Professional Suspended Front-lit LED Signage with Integrated Hanging Rail

MAJI TREATS trimless hanging sign with silver metallic 3D letters, a modern minimalist suspended signage system.

ITEM No: LB-0800
Material: Body-Acrylic / Face-Acrylic (High Transmittance)
Lighting method: Internal LED / Full-lit
Size/Font/Color: Customized
Certification: CE, RoHS (UL can be offered if needed)
Working Temperature: -40 °C ~ 60 °C
Lead time: Shipped within 7 days after payment

Professional Suspended Front-lit LED Signage System

In modern commercial spaces (such as flagship stores, mall corridors, pharmacy wayfinding systems, or office lobbies), wall space is often limited. Our suspended front-lit signage solution was created to address this challenge. It is not just a luminous sign, but a complete spatial signage and guidance system.

By combining ultra-thin illuminated letters with a sturdy stainless steel integrated mounting rail, we achieve perfect spatial balance for brand signage suspended in the air. Front-lit technology ensures instant visual recognition, while the suspended design gives brands a premium, three-dimensional international image.

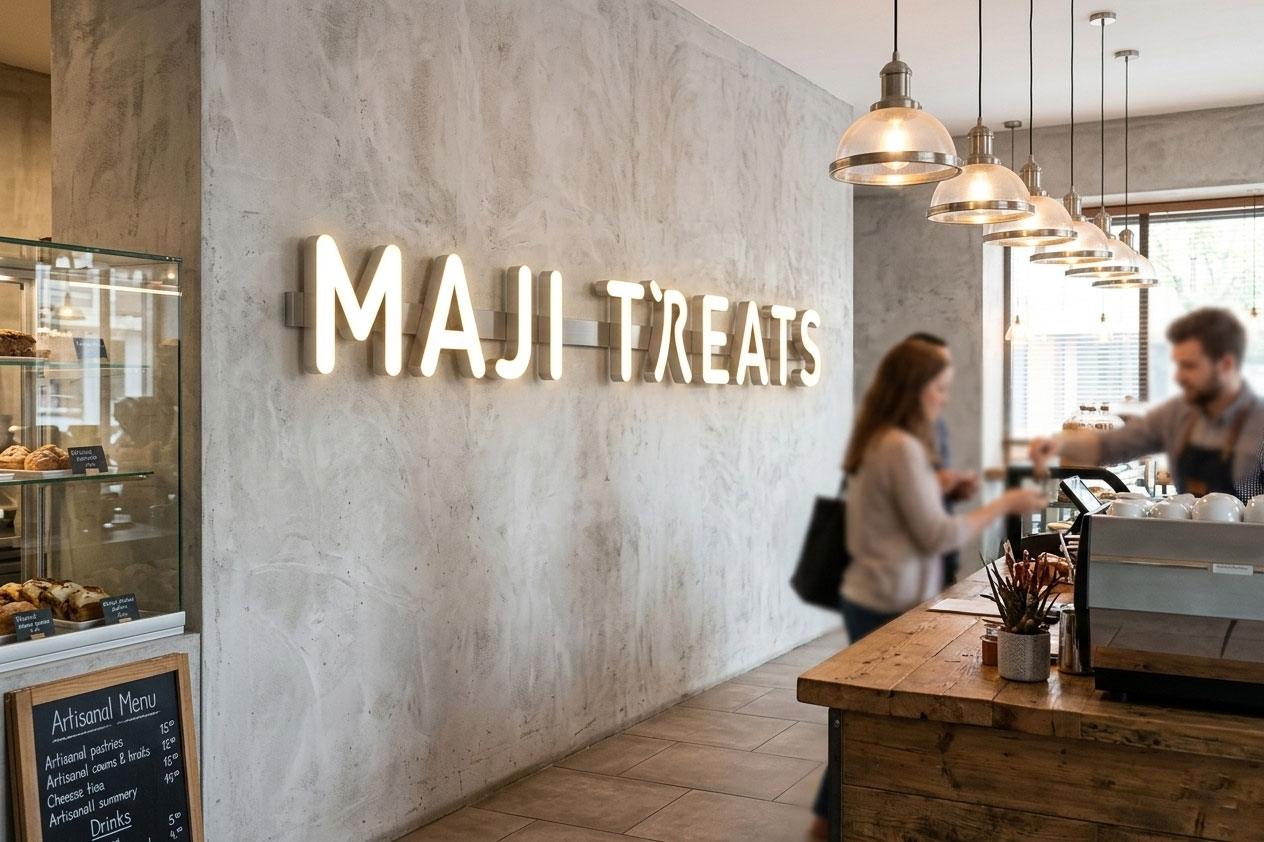

Suspended LED signage for MAJI TREATS installed in a modern bakery or cafe interior, demonstrating the application of trimless hanging signs in premium interior design.

Technical Excellence & Craftsmanship

1. Optimum Front-lit Lighting Technology

Optical Acrylic Panel: Uses optical-grade diffused acrylic of 5mm thickness or above, processed with precision edge polishing. Its molecular structure evenly diffuses LED light, ensuring a full, soft luminous surface while eliminating light spots or shadows.

High-standard LED Modules: Equipped with high-lumen, low-power LED matrix modules featuring high Color Rendering Index (CRI), accurately reproducing brand colors while maintaining extremely low light decay over 50,000 hours of operation.

2. Industrial-grade Precision Letter Housing

Laser Seamless Welding: The letter housing uses 0.8mm–1.2mm 304 stainless steel, processed with high-power laser cutting and seamless welding technology to ensure sharp, clean edges like a blade.

Surface Finishing: Available in classic brushed, mirror, and matte powder-coated finishes. Every corner is manually polished through multiple processes to present premium metal depth and texture.

3. Integrated Suspension Rail System

Hidden Wiring Channel Design: All letters are pre-mounted on reinforced rails with internal cable routing. No exposed wiring is visible from the exterior, greatly improving visual cleanliness.

Structural Balance Engineering: For long-format signage layouts, reinforcement ribs are built into the rail system to prevent central sagging. Adjustable stainless steel suspension rods allow flexible adaptation to various ceiling heights.

Advantages & Technical Specifications

Dimension	Description of Advantages
Installation Efficiency	Traditional individual letters require multiple drillings, whereas the track solution only needs 2-3 fixing points, increasing installation speed by 70%.
Visual Neatness	All messy wires are physically concealed within the track, making it the top choice for high-end retail stores.
Structural Safety	The integrated track enhances the letters’ resistance to deformation; the suspension is stable and shake-free.
Post-maintenance	Modular design with clear positioning for transformers and drivers makes maintenance and repair extremely convenient.

Parameter	Technical Standards
Lighting Mode	Front-lit
Installation Method	Suspended / Rail-Mounted
Primary Material	304# / 316L Stainless Steel
Diffuser Material	Optical Grade Acrylic Panel
Color Customization	Supports Pantone / RAL color matching and various metallic finishes
Input / Output	AC 100-240V / DC 12V (Safety Extra-Low Voltage)
Protection Rating	Waterproof internal components and dust-proof structural design

Global Delivery & Quality Control (QC)

Aging Test: Every unit undergoes 48-hour continuous power-on testing prior to dispatch to ensure consistent light color and stability.
Multi-layer Protection: Each luminous surface is covered with a scratch-resistant protective film, and the entire unit is wrapped in thickened EPE (Pearl Cotton) foam.
Professional Reinforcement: Products are secured within custom solid wood crates to ensure components and rails remain free from physical bending or damage during international transit.
Installation Support: Consignments include detailed printed installation manuals to guide you through rapid positioning and wiring.

Frequently Asked Questions

Do you support custom designs?

Yes, we are a direct manufacturer specalizng in 100% ustom signage You can provide your vector files (AI, EPS, PDF.or CDR) and ourengineering team will handle the rest.

What certifications do your products have?

Our products are manufactured to meet global standards, indluding ISo certification, CE, RoHs, and UL forelectrical components ensuring compliance for international projects.

What is the typical lead time?

Production usualy takes 7-12 working days depending on the complexity of the project We priortize strict quality control (Strict QC) at every stage from cutting to final packing.
