Power Connection Specifications Installation Steps Equipment Daily Maintenance and Troubleshooting Guide Troubleshooting Table Routine Maintenance Table Problem Inspection Items Solutions No Illumination 1. Check whether the transformer indicator light is on. 2. Check whether the wiring is correct. 1. Check…

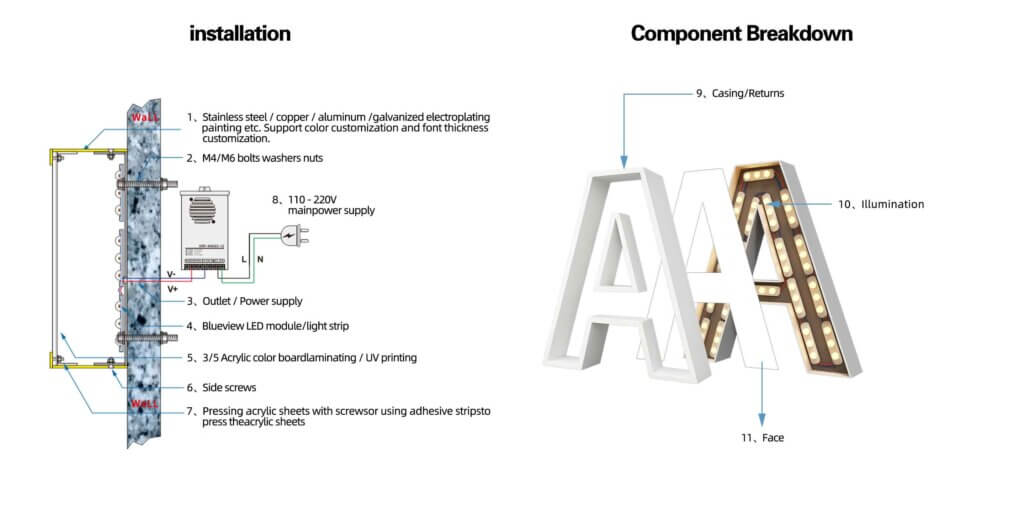

Illuminated letters installation is easier and safer when the sign structure, template, power location, wiring distance, waterproof details, and final testing are planned before production.

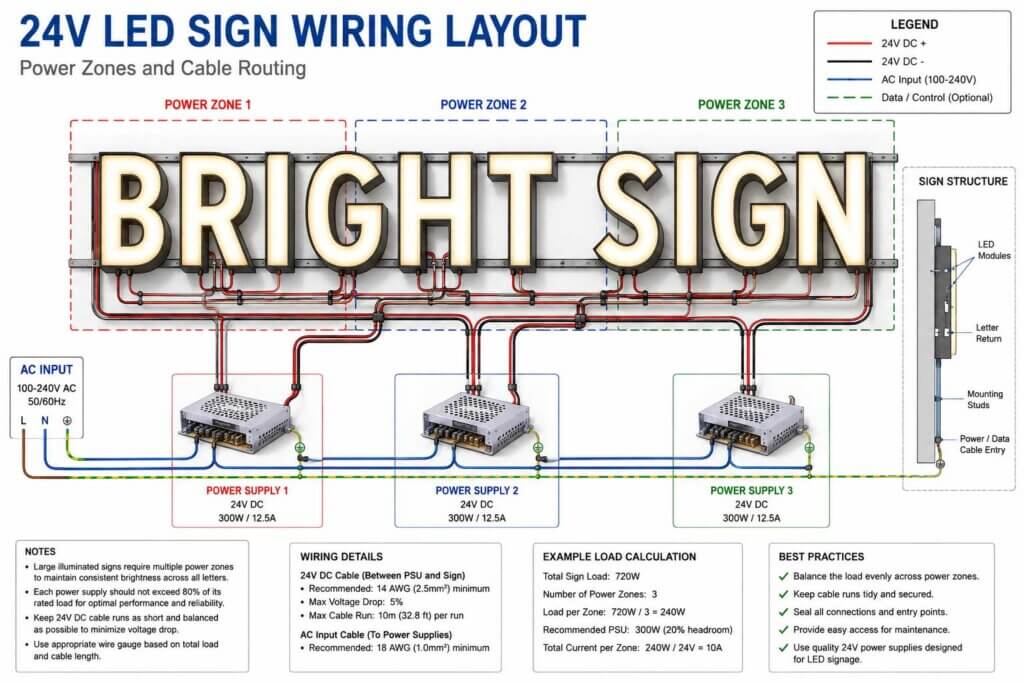

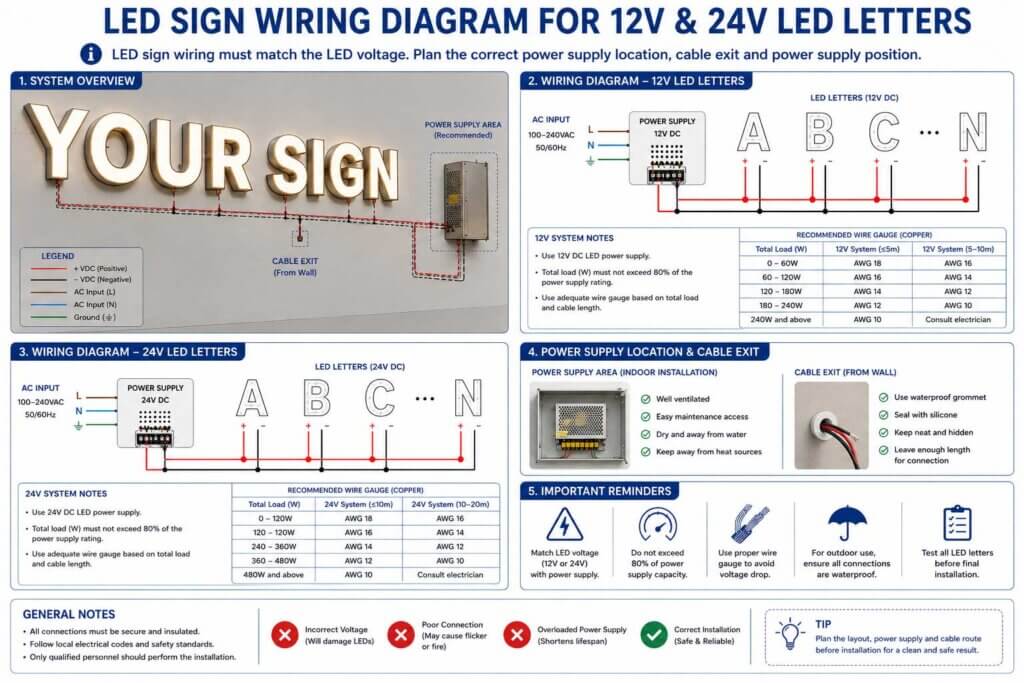

A clear LED sign wiring diagram helps installers connect illuminated letters safely, reduce voltage drop, protect outdoor wiring, and avoid costly installation mistakes. This guide explains how to plan power supplies, cable runs, power zones, RGB controllers, and testing before installation.
