The LED sign letters power supply is one of the most important parts of an illuminated sign. Buyers often focus on the letter shape, acrylic face, stainless steel finish, or lighting color, but the power design decides whether the sign stays bright, stable, and reliable after installation.

If the power supply is too small, installed in the wrong place, or matched with the wrong voltage, the sign may flicker, lose brightness, overheat, or fail early. For outdoor LED channel letters, rain, heat, dust, and maintenance access also affect performance.

In this guide, Retay Sign explains how to choose a power supply for LED channel letters, illuminated letters, light box signs, and commercial branding projects.

• Why the LED sign letters power supply matters
• Match the correct voltage: 12V or 24V
• Calculate total wattage with a safety margin
• Choose indoor or waterproof outdoor power supplies
• Consider voltage drop and cable distance
• Split large signs into power zones
• Confirm certifications and standards

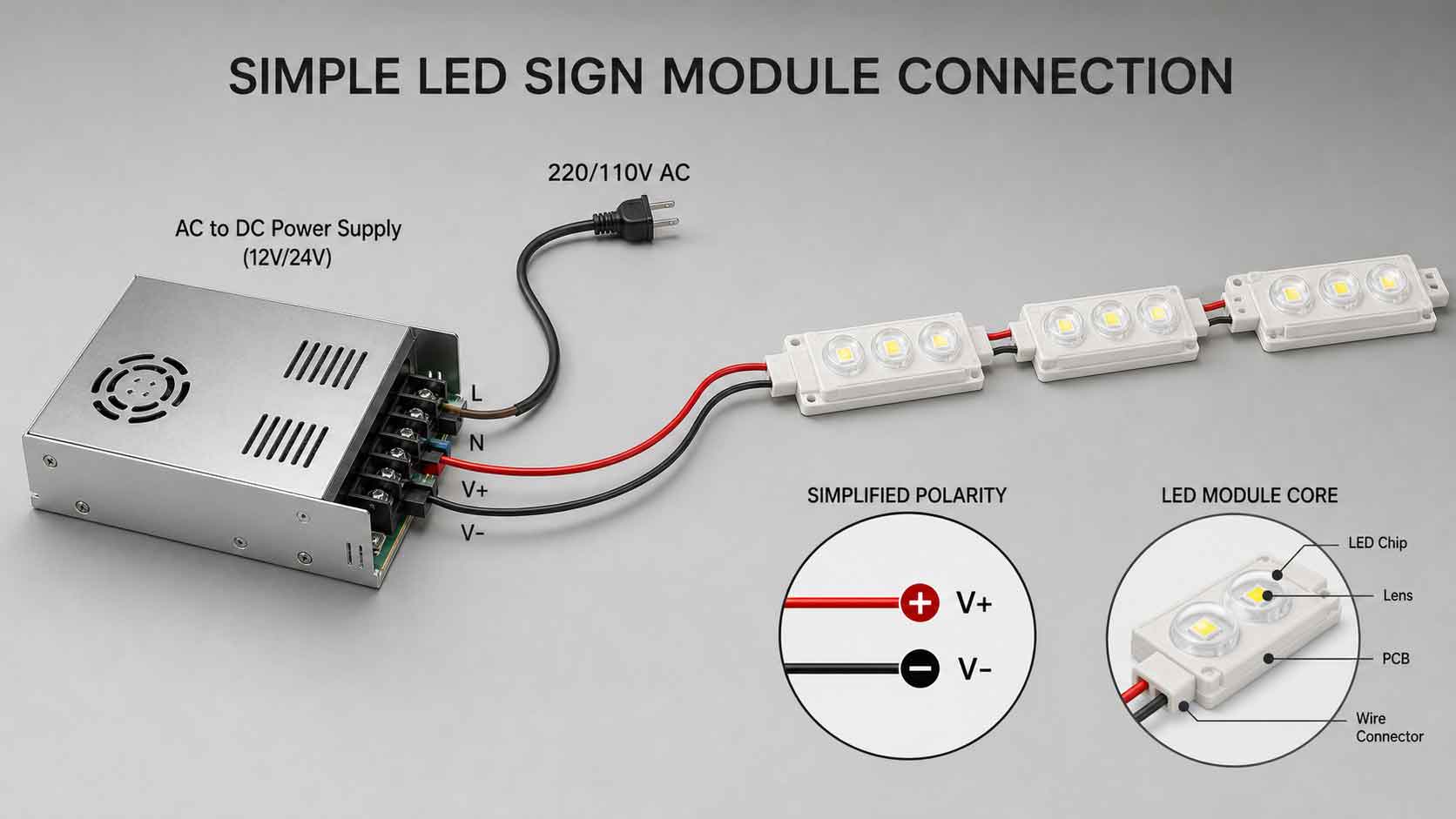

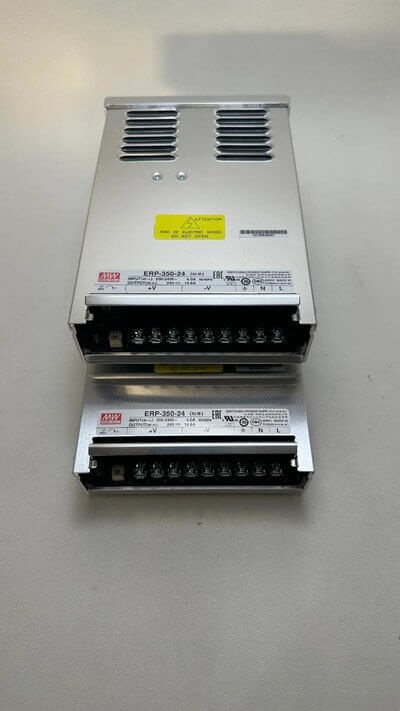

A power supply converts building electricity into the low-voltage power used by LED modules. Most illuminated letters operate with 12V or 24V DC systems, depending on the LED type, sign size, and wiring layout.

The LED sign letters power supply affects brightness consistency, LED lifespan, energy efficiency, safety, and maintenance cost.

For custom signage projects, power planning should begin before production. The supplier should know the letter size, lighting type, module wattage, installation location, cable distance, and local voltage standard before confirming the final LED sign letters power supply layout.

The first step is to confirm whether the sign uses 12V or 24V LED modules. Both options are common in LED channel letters and illuminated signs.

12V LED signs are often used for smaller letters, short wiring runs, indoor signs, and standard storefront projects. 24V LED signs are often better for larger signs, longer cable distances, and projects where voltage drop needs better control.

The key rule is simple: the power supply voltage must match the LED module voltage.

Every LED module has a rated power consumption. To select the right LED sign letters power supply, add the wattage of all modules used in the sign.

For example, if the LED modules in one sign require 80W in total, do not choose an 80W power supply. The power supply should not run at full load every day. A safer choice is usually at least 100W, and outdoor signs or long-hour projects may need a larger safety margin.

A practical safety margin is commonly around 20-30%. This helps reduce heat stress and supports stable long-term operation. Undersized power supplies are a common reason for flickering, weak brightness, and early failure.

Indoor signs and outdoor signs need different protection. For indoor reception signs, office logo walls, or mall signs, a standard indoor power supply may be suitable if it is installed in a dry and ventilated location.

Outdoor LED sign letters need stronger protection. A waterproof power supply or protected electrical box is usually required because rain, dust, heat, and moisture can affect the installation area.

Waterproofing is not only about the power supply housing. Cable connectors, wiring exits, letter backs, and installation holes should also stop water from entering the sign body or electrical points.

Voltage drop happens when electrical power loses strength over a long cable distance. In LED sign letters, this can make the letters closer to the power supply brighter while letters farther away look dimmer.

Voltage drop is affected by cable length, cable thickness, total load, voltage, and wiring layout. Large signs and remote power supply locations need extra attention.

Ways to reduce voltage drop include:

• Use proper cable size for the load and distance
• Keep power supplies closer to the sign when possible
• Use 24V LED signs for longer wiring runs when suitable
• Split large signs into several power zones
• Add power injection points for long LED runs

Good wiring design is especially important for large LED channel letters, RGB signs, programmable letters, and facade signs.

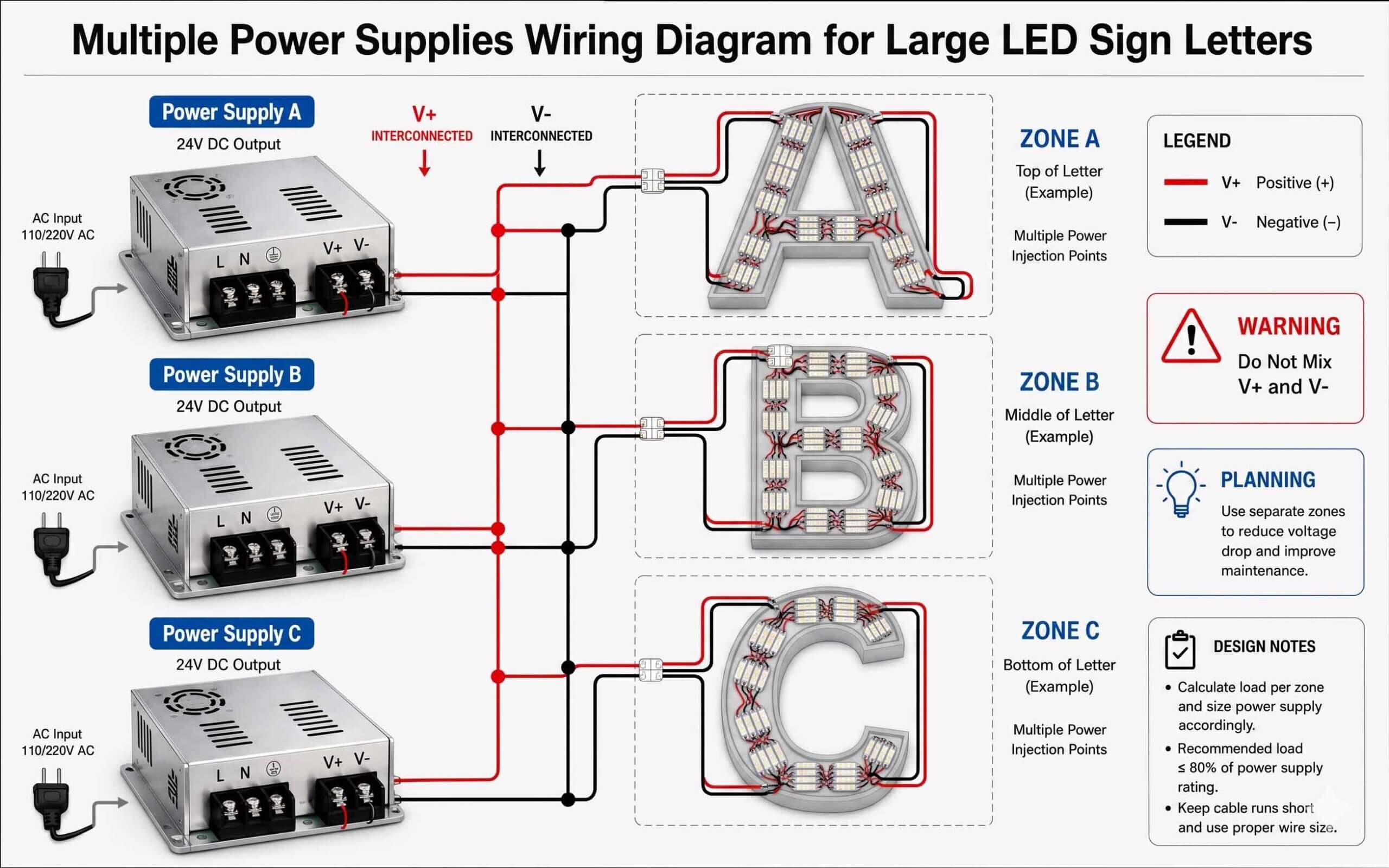

For small signs, one power supply may be enough. For large illuminated letters, multiple power supplies or power zones may be a better solution.

Power zoning means dividing the sign into sections by location or letter size. This keeps brightness more even, reduces stress on one power supply, and makes maintenance easier.

A power supply creates heat during operation. If it is placed in a sealed space without ventilation, its lifespan may be reduced.

The power supply should be installed in a location with enough air space and proper protection. Before production, confirm where it will be installed and how technicians can access it later.

Different countries and projects may require different electrical standards. Buyers should confirm whether components need CE, RoHS, UL, or other documentation.

For projects in North America, UL-listed or UL-recognized components may be requested by contractors, landlords, or local authorities. You can learn more about UL safety certification from the official UL Solutions website.

Electrical compliance should be discussed early. The power supply for LED channel letters should match the market, installation environment, and local requirements.

Many LED sign problems come from small electrical decisions made too late. Avoid these common LED sign letters power supply mistakes:

• Choosing the power supply only by price
• Using the wrong voltage
• Running the power supply at full load
• Ignoring voltage drop on long cable runs
• Installing indoor power supplies outdoors
• Using thin cables for high-load signs
• Sealing the power supply where heat cannot escape
• Making the power supply impossible to access
• Not confirming local certification requirements

These problems can lead to flickering, uneven brightness, overheating, water damage, and shorter service life.

Before ordering custom LED sign letters, confirm the letter size, installation environment, LED color, module type, voltage, wattage, power supply location, cable distance, waterproof needs, local input voltage, certifications, and maintenance access.

For related signage options, you can also review Retay Sign’s Channel Letters and Light Box Signs solutions. These product types often use different LED layouts, power supply positions, and installation methods.

Choosing the right LED sign letters power supply is not only an electrical detail. It is part of the complete signage design. The right voltage, wattage, waterproof protection, wiring layout, and maintenance access help LED channel letters stay bright and reliable.

Retay Sign manufactures custom LED channel letters, illuminated letters, light box signs, and brand signage for international projects. Our team can recommend suitable LED modules, power supplies, wiring layouts, and waterproof solutions based on your logo, letter size, installation location, and lighting requirements.

Send us your design, dimensions, installation photos, and preferred lighting effect. We will help you plan a stable power supply solution for your custom LED signage project.
