RGB channel letters provide a dynamic way to elevate your brand with vibrant, programmable lighting. Whether you are choosing between DMX or SPI systems, understanding how these controllers power your RGB channel letters is essential for any high-end signage project.

In this guide, we explain the main options buyers should understand before ordering RGB or programmable illuminated letters.

Standard RGB letters can change colors, fade, flash, or follow preset modes. They are suitable for simple color-changing signage, restaurant signs, bars, retail stores, and entertainment venues.

Programmable letters go further. Each letter, section, or LED pixel can be controlled individually, allowing chasing effects, gradients, animation, timing sequences, and synchronized lighting. These are often used for shopping malls, brand stores, stages, casinos, and landmark signage.

The key difference is control precision. RGB changes the overall color. Programmable systems control zones or pixels.

The LED controller is the “brain” of the sign. It decides what effects are possible, how stable the lighting is, and how easy the sign is to operate after installation.

A basic controller may only support simple color changes and preset programs. A more advanced controller can support remote control, app control, DMX control, SPI pixel control, music synchronization, timers, or custom programming.

Before choosing a controller, buyers should consider:

• Do you require simple color-changing transitions or fully animated sequences for your RGB channel letters?
• Do you need all your RGB channel letters to change color in unison, or does each letter require individual, programmable control?
• Is the sign indoor or outdoor?
• How far is the controller from the sign?
• Does the project need DMX, SPI, Wi-Fi, RF, or app control?
• Who will operate the sign after installation?

A basic RGB controller is suitable for simple signs that only need color changing, fading, flashing, or static colors. It is cost-effective and easy to operate.

Best for: small shops, indoor signs, simple storefront letters.

RF remote controllers allow users to change colors and modes without opening the sign box or control cabinet. They are convenient for small and medium signs.

Best for: retail stores, restaurants, bars, salons, and reception signs.

Wi-Fi/app controllers allow users to control colors and modes from a mobile phone. Some models support schedules or custom scenes.

Best for: stores that change lighting based on holidays, campaigns, or business hours.

DMX is commonly used in professional lighting projects. It provides stable control for complex lighting effects and can synchronize signage with stage lighting, facade lighting, or building lighting systems.

Best for: malls, theaters, casinos, clubs, event venues, and commercial projects requiring professional lighting integration.

SPI controllers are used for programmable pixel LEDs. They allow individual control of LED pixels or sections, making animations, chasing effects, gradients, and dynamic sequences possible.

Best for: high-impact signs, large programmable letters, entertainment venues, and custom brand installations.

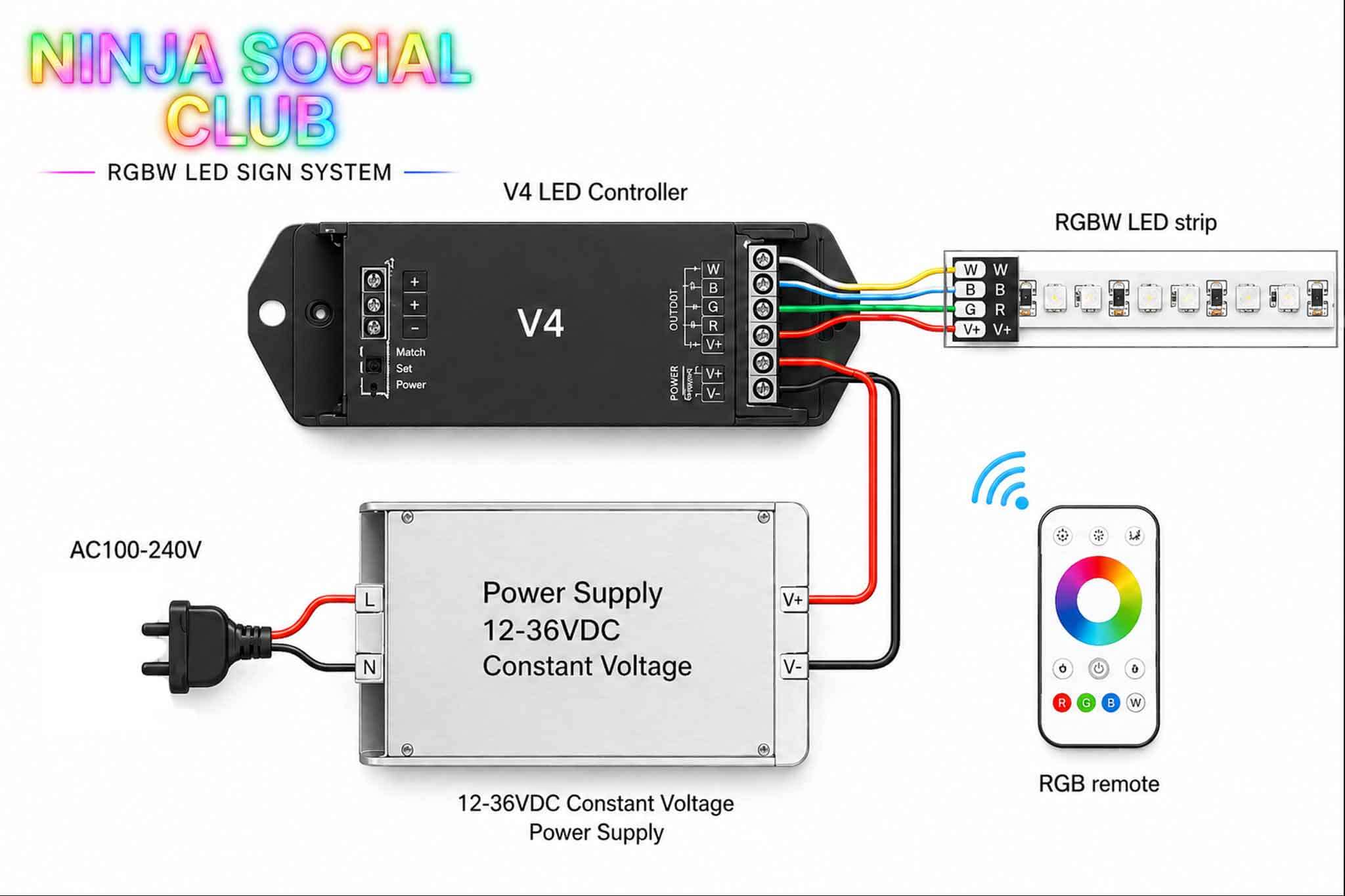

The controller must match the LED type. RGB LED modules, RGBW modules, addressable pixel LEDs, and LED strips may require different control signals and wiring methods.

While standard RGB channel letters feature straightforward wiring, programmable RGB channel letters require a precision-engineered plan. Factors such as signal direction, cable length, and voltage drop are critical, and strategic power injection is essential to ensure a flawless visual effect for your high-end signage.

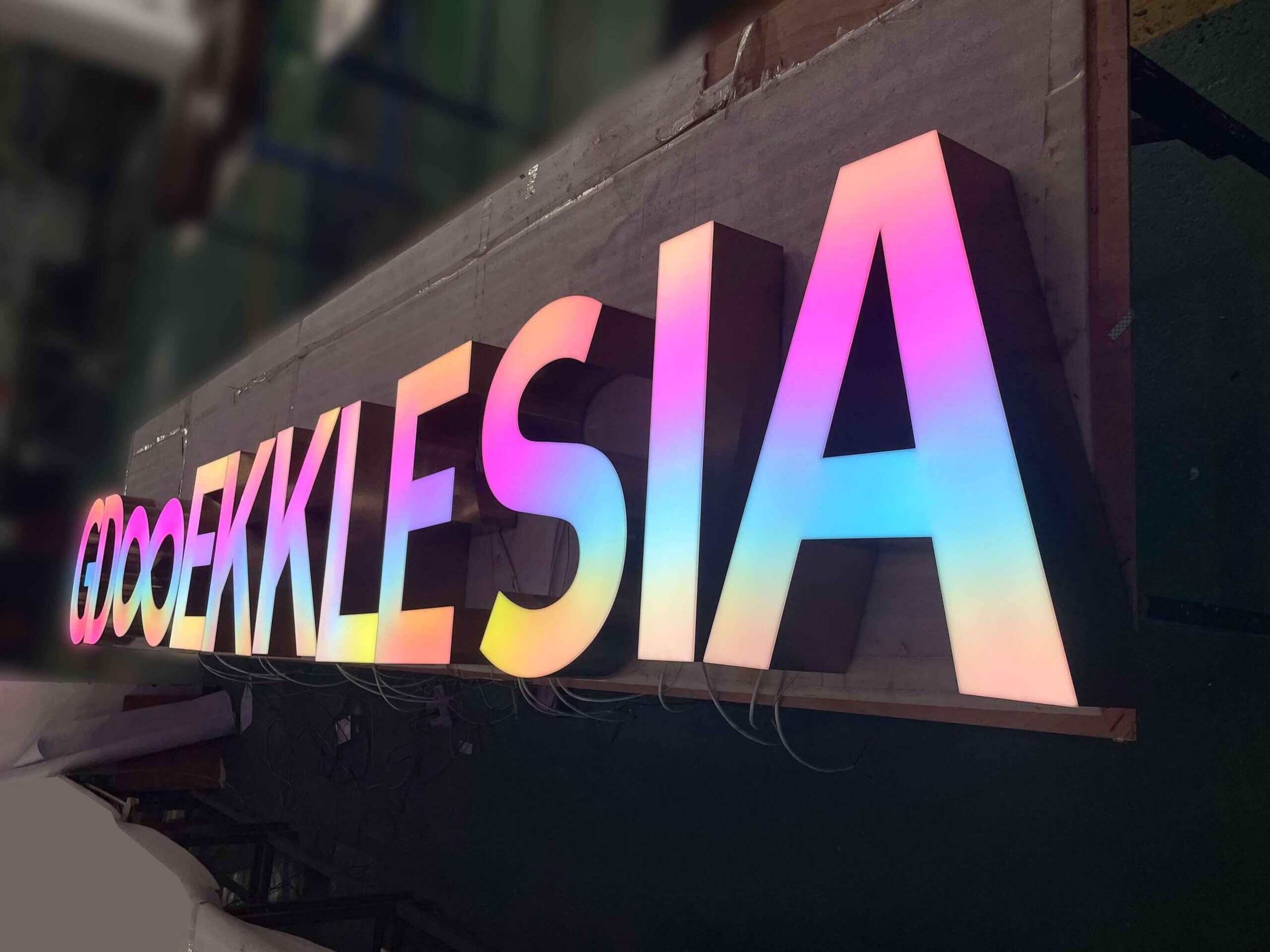

For large signs, we usually recommend confirming the lighting effect before production so the controller, LED modules, and wiring layout can be matched correctly.

RGB and programmable signs often use more power than single-color LED letters. The power supply should have enough capacity and must be suitable for the installation environment.

Important points include:

• Correct voltage, such as 12V or 24V
• Enough wattage with safety margin
• Waterproof power supply for outdoor use
• Proper cable size to reduce voltage drop
• Separate power zones for large signs

A beautiful programmable sign can still perform poorly if the power design is not correct.

For outdoor RGB or programmable letters, the controller and power supply should be placed in a protected location or waterproof control box. Cable connectors, LED modules, and letter backs should also be designed for weather resistance.

Outdoor projects should consider rain, heat, dust, UV exposure, and long operating hours. Maintenance access is also important, especially for large facade signs.

For simple storefront signs, a basic RGB or remote controller is usually enough. For brand stores or commercial spaces that need scheduled color scenes, an app controller may be more practical.

For professional lighting projects, DMX is often the better choice. For animated letters and pixel-level effects, SPI programmable control is usually required.

A good supplier should not only ask for the letter size and logo file. They should also ask about the desired lighting effect, installation location, operation method, and local electrical requirements.

Before producing RGB or programmable letters, confirm the following details:

• Letter size and installation location
• Indoor or outdoor use
• Desired lighting effect
• Static RGB, color-changing, or programmable animation
• Control method: remote, app, DMX, SPI, or timer
• Power supply location
• Cable distance
• Local voltage standard
• Waterproof requirements
• Installation and maintenance access

RGB and programmable letters can create a much stronger visual impact than standard illuminated letters, but the controller and electrical design are critical. The right system depends on the sign size, lighting effect, installation environment, and how the sign will be operated.

If you are planning a premium RGB channel letters project, Retay Sign leverages 15 years of manufacturing expertise to provide the ideal LEDs, controllers, and wiring solutions. Whether you need sophisticated branding for retail or specialized Healthcare Signage for medical facilities, we tailor every component to meet your specific installation needs and safety standards.we ensure your project meets global standards like CE, UL, and RoHS
