Suspended LED Signage Manufacturer

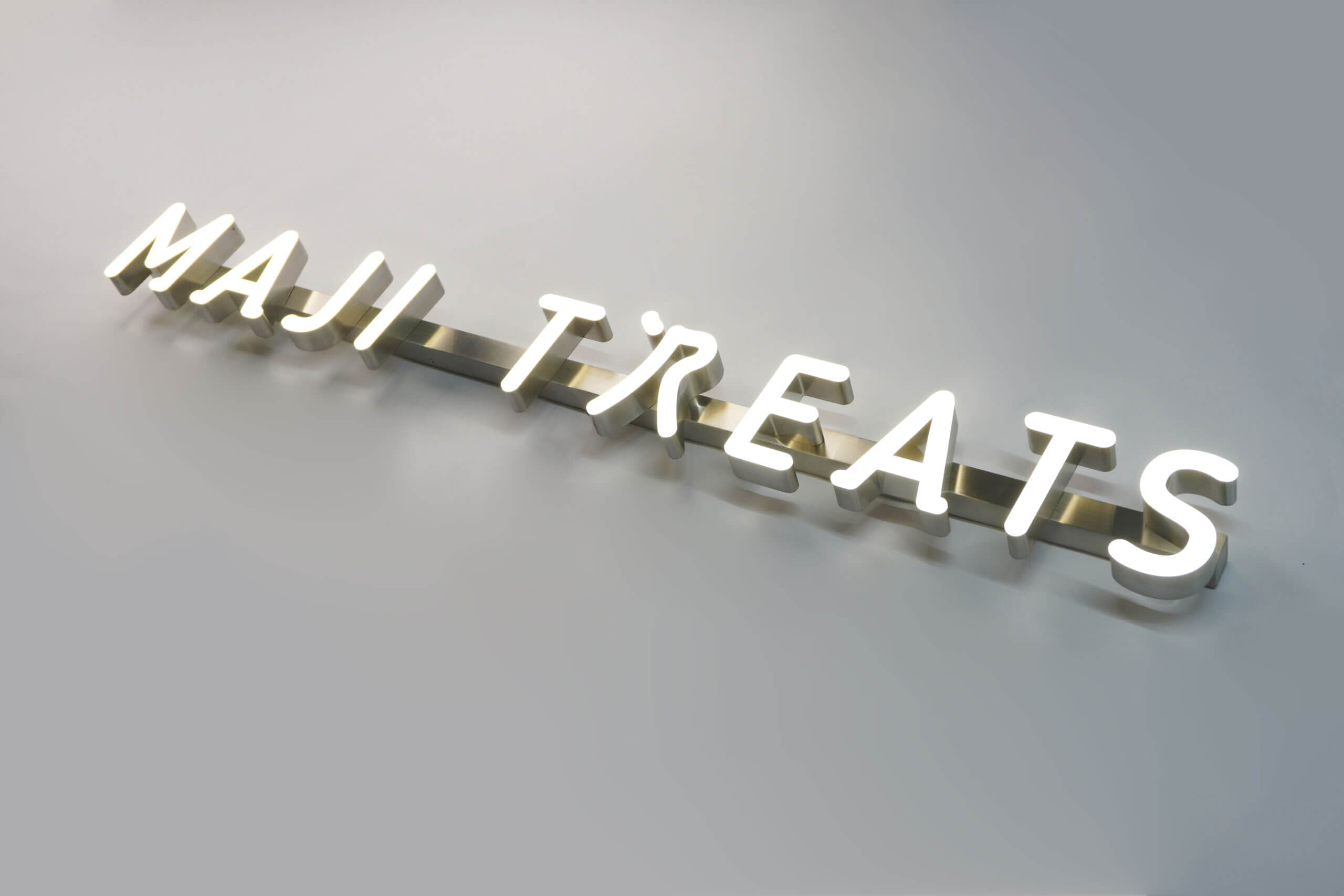

MAJI TREATS trimless hanging sign with silver metallic 3D letters, a modern minimalist suspended signage system.

Suspended LED Signage with Integrated Hanging Rail

ITEM No: LB-0800
Material: Body-Acrylic / Face-Acrylic (High Transmittance)
Lighting method: Internal LED / Full-lit
Size/Font/Color: Customized
Certification: CE, RoHS (UL can be offered if needed)
Working Temperature: -40 °C ~ 60 °C
Lead time: Shipped within 15 days after payment

Professional Suspended LED Signage System with Front-lit Design

In modern commercial spaces—such as flagship stores, mall corridors, pharmacy wayfinding systems, or office lobbies—wall space is often limited. Our Suspended LED Signage solution was specifically engineered to address this spatial challenge. This front-lit suspended LED signage is more than just a luminous display; it is a comprehensive spatial branding and guidance system. By utilizing an integrated rail design, our suspended LED signage provides maximum visibility and a high-end minimalist aesthetic for any professional environment.

By combining ultra-thin illuminated letters with a sturdy 316L stainless steel integrated mounting rail, our Suspended LED Signage achieves a perfect spatial balance for modern branding. The precision-engineered front-lit suspended LED signage technology ensures instant visual recognition, while the elevated design gives brands a premium, three-dimensional international image. This suspended LED signage system is the ideal choice for high-end retail and corporate environments seeking a sophisticated, minimalist look.

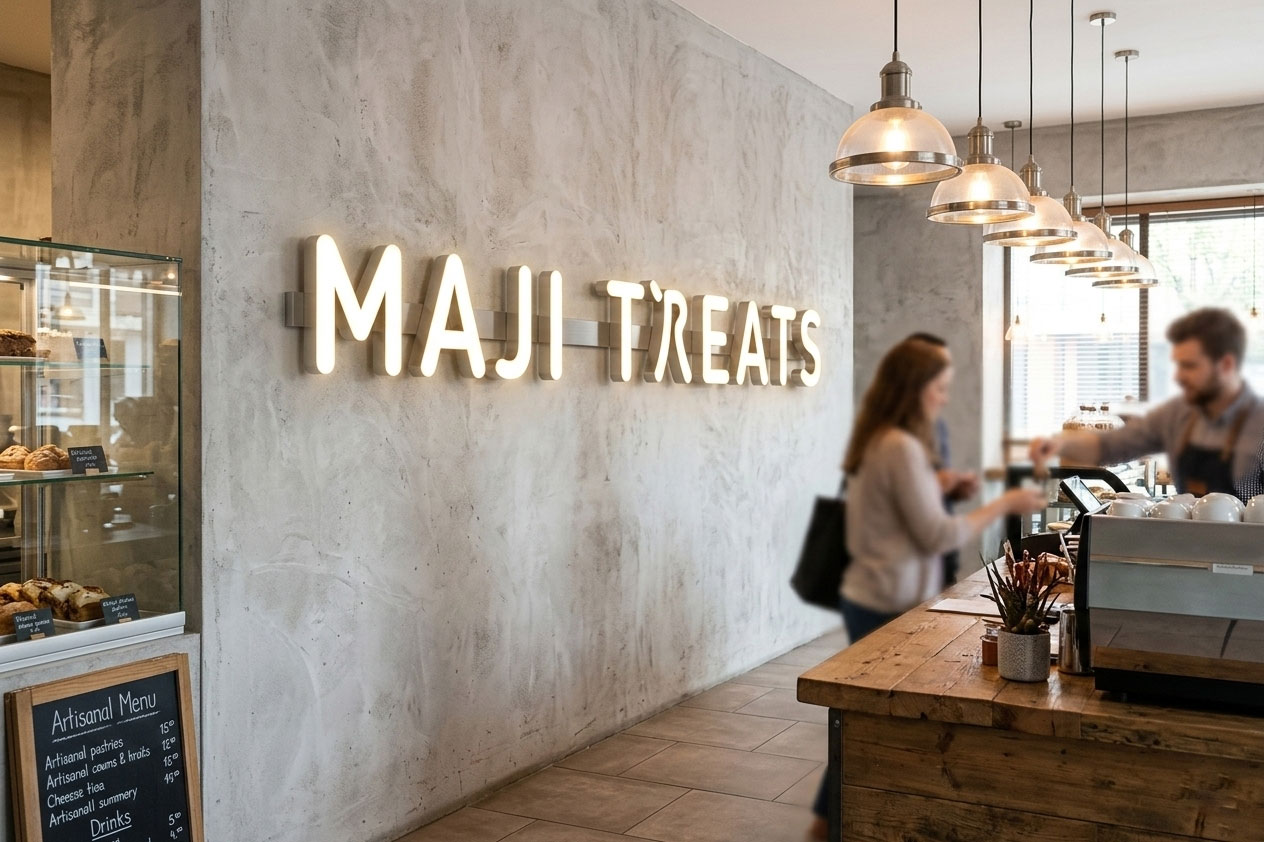

Suspended LED signage for MAJI TREATS installed in a modern bakery or cafe interior, demonstrating the application of trimless hanging signs in premium interior design.

Technical Excellence of Our Suspended LED Signage

1. Optimum Front-lit Lighting Technology

Optical Acrylic Panel: Uses optical-grade diffused acrylic of 5mm thickness or above, processed with precision edge polishing. Its molecular structure evenly diffuses LED light, ensuring a full, soft luminous surface while eliminating light spots or shadows.

High-standard LED Modules: Equipped with high-lumen, low-power LED matrix modules featuring high Color Rendering Index (CRI), accurately reproducing brand colors while maintaining extremely low light decay over 50,000 hours of operation.

2. Industrial-grade Precision Letter Housing

Laser Seamless Welding: The letter housing uses 0.8mm–1.2mm 304 stainless steel, processed with high-power laser cutting and seamless welding technology to ensure sharp, clean edges like a blade.

Surface Finishing: Available in classic brushed, mirror, and matte powder-coated finishes. Every corner is manually polished through multiple processes to present premium metal depth and texture.

3. Integrated Suspension Rail System

Hidden Wiring Channel Design: All letters are pre-mounted on reinforced rails with internal cable routing. No exposed wiring is visible from the exterior, greatly improving visual cleanliness.

Structural Balance Engineering: For long-format signage layouts, reinforcement ribs are built into the rail system to prevent central sagging. Adjustable stainless steel suspension rods allow flexible adaptation to various ceiling heights.

Why Choose Our Suspended LED Signage?

Advantages & Technical Specifications

Our front-lit suspended LED signage is engineered for high-end commercial environments, combining 316L stainless steel durability with premium illumination.

Key Benefits of Our Suspended LED Signage System

Space-Saving Design: Our suspended LED signage is the perfect solution for flagship stores and lobbies where wall space is limited.
Instant Visual Recognition: The precision-engineered front-lit suspended LED signage technology ensures your brand is visible from a distance with zero dark spots.
Professional Grade Materials: We use premium 316L stainless steel to ensure that every suspended LED signage unit maintains its luxury finish for years.
Easy Installation: The integrated rail system allows for a secure and minimalist installation of your hanging LED signs.

Dimension	Description of Advantages
Installation Efficiency	Traditional individual letters require multiple drillings, whereas the track solution only needs 2-3 fixing points, increasing installation speed by 70%.
Visual Neatness	All messy wires are physically concealed within the track, making it the top choice for high-end retail stores.
Structural Safety	The integrated track enhances the letters’ resistance to deformation; the suspension is stable and shake-free.
Post-maintenance	Modular design with clear positioning for transformers and drivers makes maintenance and repair extremely convenient.

Parameter	Technical Standards
Lighting Mode	Front-lit
Installation Method	Suspended / Rail-Mounted
Primary Material	304# / 316L Stainless Steel
Diffuser Material	Optical Grade Acrylic Panel
Color Customization	Supports Pantone / RAL color matching and various metallic finishes
Input / Output	AC 100-240V / DC 12V (Safety Extra-Low Voltage)
Protection Rating	Waterproof internal components and dust-proof structural design

Global Delivery & Quality Control (QC)

Aging Test: Every unit undergoes 48-hour continuous power-on testing prior to dispatch to ensure consistent light color and stability.
Multi-layer Protection: Each luminous surface is covered with a scratch-resistant protective film, and the entire unit is wrapped in thickened EPE (Pearl Cotton) foam.
Professional Reinforcement: Products are secured within custom solid wood crates to ensure components and rails remain free from physical bending or damage during international transit.
Installation Support: Consignments include detailed printed installation manuals to guide you through rapid positioning and wiring.

Frequently Asked Questions

How do I start a custom LED signage inquiry?

Yes, we are a direct manufacturer specalizng in 100% ustom signage You can provide your vector files (AI, EPS, PDF.or CDR) and ourengineering team will handle the rest.

What certifications do your products have?

Our products are manufactured to meet global standards, indluding ISo certification, CE, RoHs, and UL forelectrical components ensuring compliance for international projects.

What is the typical lead time for custom LED signage manufacturing?

Production usually takes 7-12 working days depending on the project complexity. As a leader in custom LED signage manufacturing, we prioritize strict quality control (Strict QC) at every stage—from precision cutting to final export packing.

How do you ensure product quality?

We use high- grade materials (metal, acryic, and premium LEDs) and perform a 24-48 hour ighting test for allilluminated signs before shipping.

Do you provide international shipping and customs support?

Yes, we have extensive experience in global logistics. We offer multiple shipping options including express air freight (DHL/FedEx/UPS) for urgent needs and sea freight for bulk orders to minimize costs. Our team provides all necessary documentation for customs clearance, ensuring your custom signage arrives smoothly at your doorstep, whether you are in North America, Europe, or Australia.

Is the signage easy to install by ourselves?

We design our products with easy installation in mind. Every order includes a 1:1 scale installation template and necessary mounting hardware (such as spacers or threaded rods). For illuminated signs, we provide clear wiring diagrams. Most of our clients can complete the installation with a local handyman, but we also offer remote video technical support if needed.

What kind of warranty do you offer on your signage?

We stand behind our craftsmanship with a solid warranty. We typically offer a 3-year warranty on LED modules and power supplies, and a 5-year warranty on the sign shell structure (stainless steel, acrylic, etc.). If any component fails under normal use during this period, we will provide free replacements to ensure your brand keeps shining.
