When planning custom channel letters, many buyers ask the same question: 12V vs 24V LED signs, which voltage is better? Both 12V and 24V LED systems are widely used in illuminated signage, but the best choice depends on letter size, cable distance, power supply layout, voltage drop, and installation environment.

For small indoor signs, 12V LED modules may be enough. For large outdoor channel letters, long wiring runs, or projects that need stable brightness, 24V LED modules are often a better option.

In this guide, Retay Sign explains how to compare 12V vs 24V LED signs before production.

• What Do 12V and 24V Mean in LED Signs?
• 12V vs 24V LED Signs: Main Difference
• When 12V LED Signs Are a Good Choice
• When 24V LED Signs Are Better
• Voltage Drop and Wiring Distance
• Power Supply Selection
• Indoor vs Outdoor LED Signs
• Common Mistakes to Avoid
• Which Voltage Should You Choose?

In LED signage, 12V and 24V refer to the low-voltage DC output used by LED modules inside the sign letters. The building may use 110V or 220V AC input, but the LED sign power supply converts it into safe low-voltage DC power.

The most important rule is simple: the LED module voltage must match the power supply voltage.

A 12V LED module should use a 12V power supply. A 24V LED module should use a 24V power supply. Using the wrong voltage can cause weak brightness, overheating, LED damage, or power supply failure.

The main difference between 12V vs 24V LED signs is how they perform over cable distance and electrical load.

A 24V system can usually carry the same wattage with lower current than a 12V system. This can help reduce voltage drop and make brightness more consistent across large signs.

This does not mean 24V is always better. For small signs with short wiring distance, 12V can still be practical, reliable, and cost-effective.

The right choice depends on the full sign design, not only the voltage number.

12V LED signs are common for small and medium signage projects. They are often used for indoor logo signs, reception signs, retail storefront letters, and short cable runs.

12V LED signs are usually suitable for:

• Small channel letters
• Indoor illuminated logos
• Short wiring distance
• Standard storefront signs
• Simple white or single-color LED layouts
• Projects where the power supply is close to the sign

If the total LED load is not too high, 12V LED modules can provide stable performance. For many compact signs, 12V is a practical and economical solution.

24V LED signs are often recommended for larger channel letters and longer wiring distances. They are useful when the sign is installed outdoors, mounted high on a building, or connected to a power supply located far from the letters.

24V LED signs are often suitable for:

• Large channel letters
• Outdoor building signs
• Long cable runs
• High-load LED layouts
• Projects with voltage drop concerns
• Multi-zone power supply designs

For large illuminated letters, 24V can help maintain more even brightness from one end of the sign to the other.

This is why many large commercial signage projects compare 12V vs 24V LED signs during the early design stage.

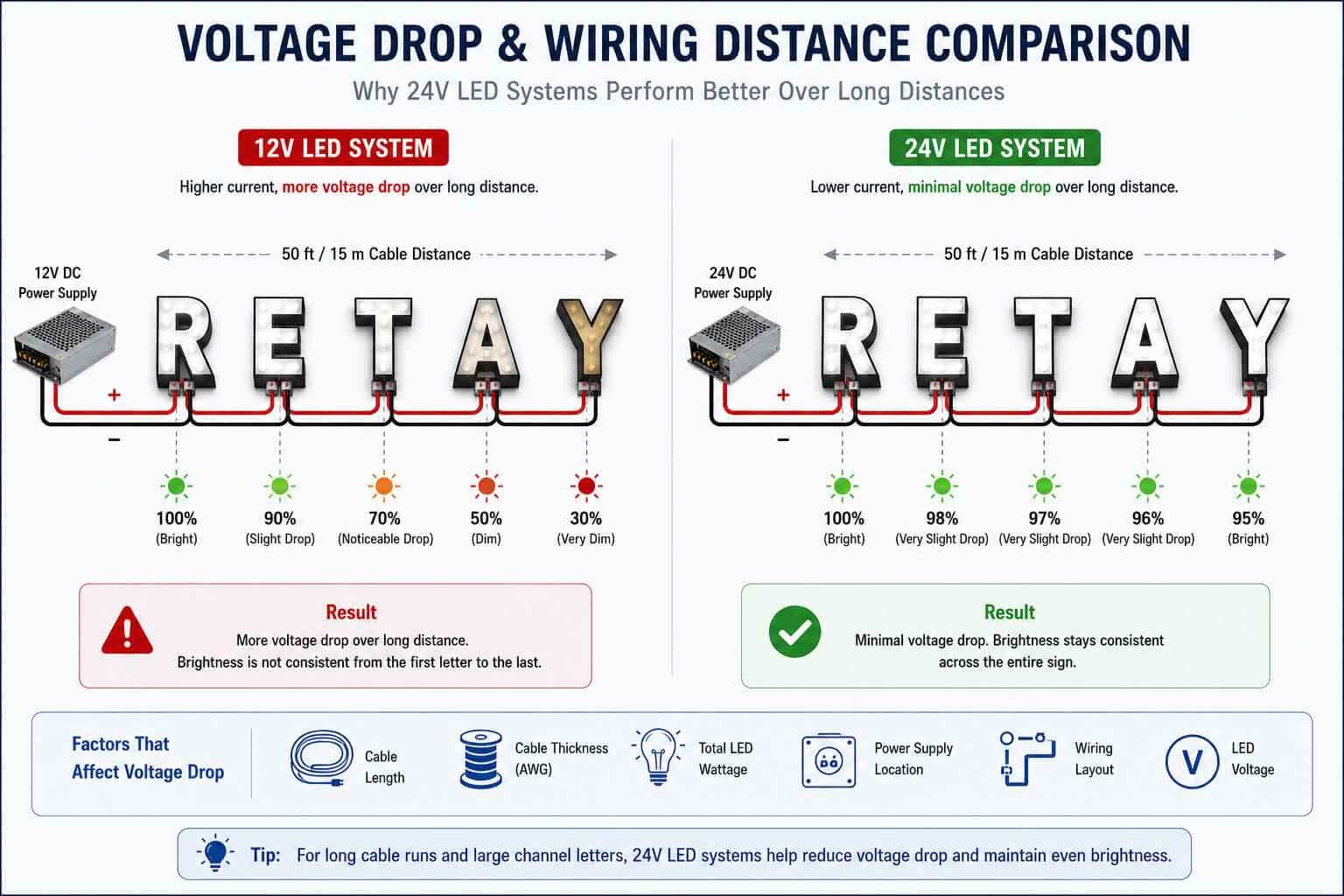

Voltage drop happens when electrical power loses strength as it travels through long wires. In LED channel letters, voltage drop may cause one letter to look bright while another letter looks dim.

Voltage drop is affected by:

• Cable length
• Cable thickness
• Total LED wattage
• Power supply location
• Wiring layout
• LED voltage

When comparing 12V vs 24V LED signs, voltage drop is one of the most important factors. In general, 24V systems are better for longer wiring distances.

To reduce voltage drop, a sign manufacturer may use thicker cables, shorter cable routes, multiple power supplies, or additional power injection points.

You can also read our guide about LED sign letters power supply for more details about wattage, wiring distance, and power supply planning.

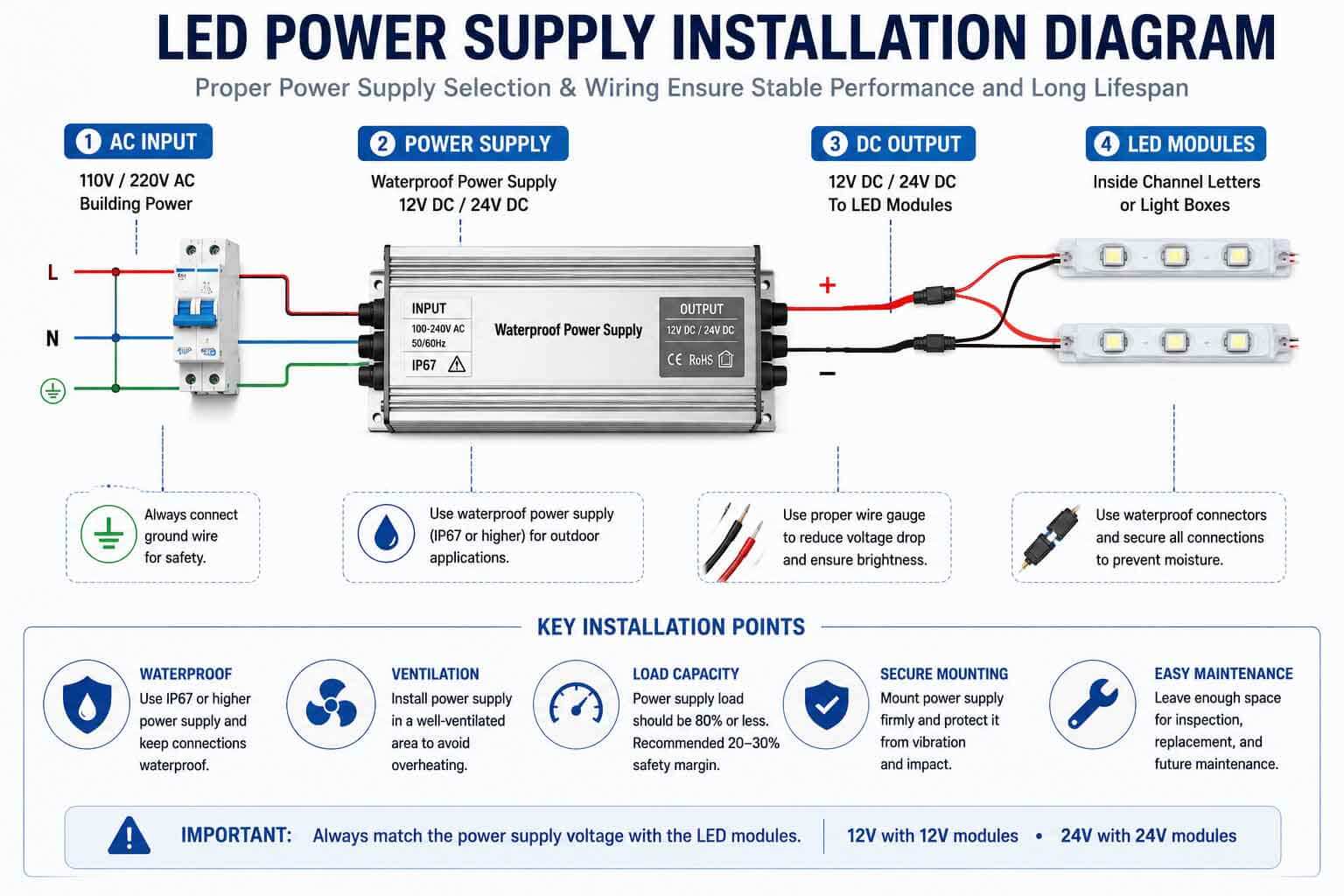

Whether you choose 12V or 24V, the power supply must match the LED module voltage. A 12V LED sign needs a 12V DC power supply. A 24V LED sign needs a 24V DC power supply.

You also need to calculate the total wattage of all LED modules in the sign. The power supply should not run at full load every day.

A practical safety margin is usually around 20-30%. For example, if the LED modules use 80W in total, a 100W or higher power supply is usually safer than an 80W unit.

For outdoor signs, waterproof protection, cable sealing, ventilation, and maintenance access should also be considered.

For electrical safety references, buyers can also review information from UL Solutions, especially for projects that require recognized electrical components.

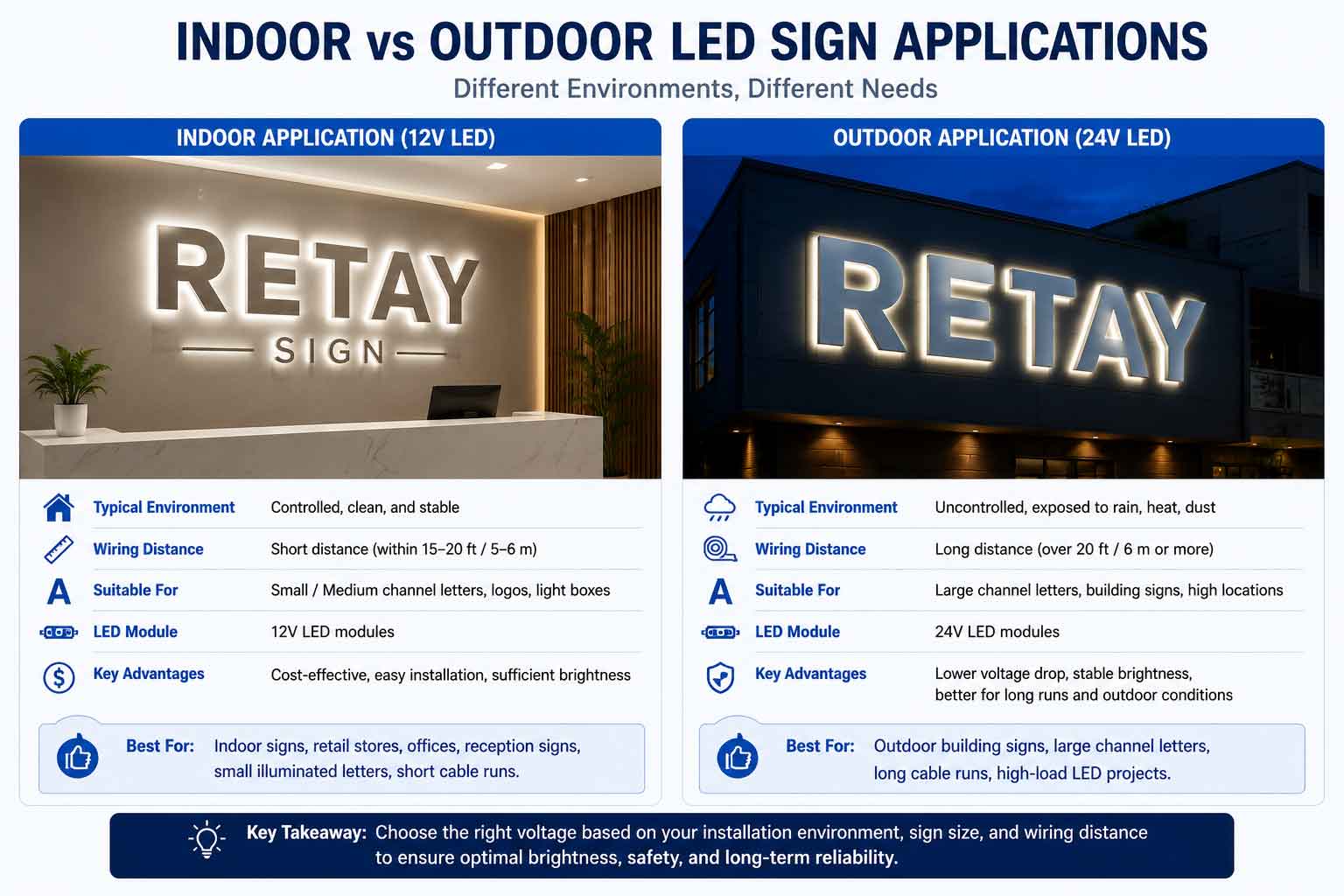

Indoor LED signs usually have shorter wiring distances and a more stable environment. In many indoor applications, 12V LED modules are enough.

Indoor projects may include office logo walls, reception signs, retail displays, and small illuminated letters. These signs often have easier maintenance access and shorter cable runs.

Outdoor LED signs face more challenges. Rain, heat, dust, longer cable distance, and harder maintenance conditions can all affect performance.

For large outdoor channel letters, 24V LED modules may help improve brightness stability and reduce voltage drop. Outdoor projects should also use waterproof power supplies, sealed connectors, correct wire size, and safe installation access.

When choosing between 12V vs 24V LED signs, avoid these common mistakes:

• Using a power supply with the wrong voltage
• Choosing 12V for a long-distance project without checking voltage drop
• Running the power supply at full load
• Using cables that are too thin
• Installing indoor power supplies outdoors
• Placing the power supply where heat cannot escape
• Making the power supply difficult to access
• Ignoring local certification requirements

These mistakes can lead to flickering, uneven brightness, overheating, water damage, and shorter LED lifespan.

Good voltage planning helps the sign stay bright, stable, and easier to maintain after installation.

For small indoor signs and short cable runs, 12V LED signs are often a good choice. They are widely used, easy to source, and suitable for many standard illuminated signs.

For large channel letters, outdoor signs, long wiring distance, or projects that need more stable brightness, 24V LED signs are often recommended.

Before production, buyers should confirm:

• Letter size
• Installation location
• Indoor or outdoor use
• LED color and lighting effect
• Cable distance
• Power supply position
• Waterproof needs
• Local input voltage
• Certification requirements
• Maintenance access

With this information, the supplier can recommend the right LED voltage, power supply capacity, wiring layout, and installation plan.

Choosing between 12V vs 24V LED signs is not only a technical detail. It affects brightness, wiring safety, installation cost, power supply performance, and long-term reliability.
